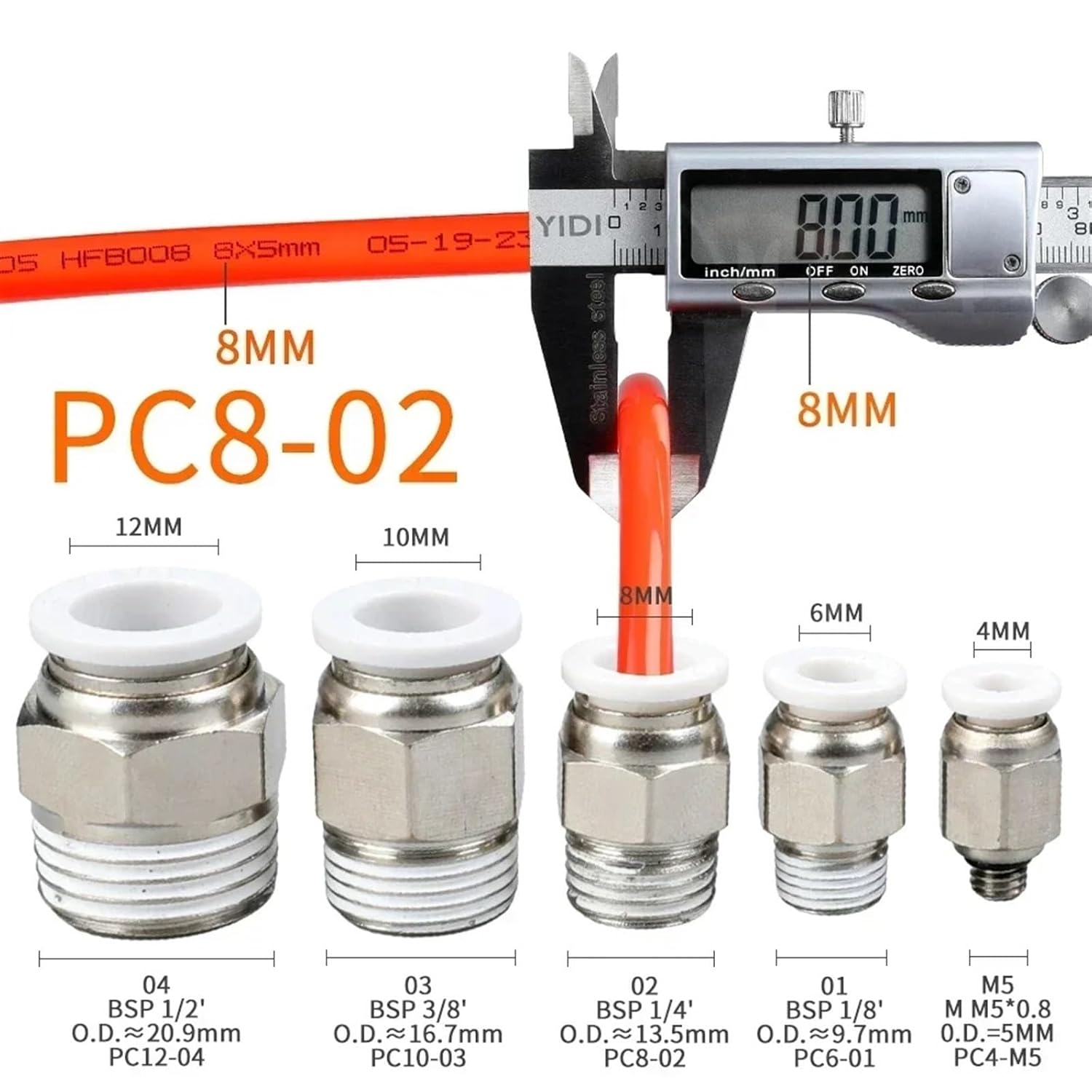

5 PC Pneumatic Air Pipe Hose 4 4mm 6mm 8mm 10mm 12mm to Male Adapter Brass Fitting Quick BSP R 1/8 1/4 3/8 1/2 01 02 03 04 (Color : 12 (Hose O.D.12MM), Size : 02 (BSP1-4))

Tee Fittings5 pcs PC Pneumatic Air Pipe Hose 4mm 6mm 8mm 10mm 12mm to Male Adapter Brass Fitting Quick Connector BSP R 1/2/3/8/4 01 02 03 04Specification:Item No.: PCConnection Way: One-Touch Quick ConnectionType: Hose to Male ThreadDesign: StraightMaterial: Nitrile Rubber, Plasticn , MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Hose: SolfNylon, PolyurethaneNormal Operating Pressure: 010kgf/cm² (01.0MPa / 01.0bar)Max.Operating Pressure: 15.0 bar(1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 060 (140)Hose Size OptionsType M5METRIM5*0.8 01BSP (R)1/8" 02BSP (R)1/4" 03BSP (R)3/8" 04BSP (R)1/2" 4(Hose O.D. 4MM) × 6(Hose O.D.6MM) 8(Hose O.D.8MM) 10(Hose O.D.10MM) × 12(Hose O.D.12MM) × ComparisonNickel-Plated Brass Fittings with White Cap is better than Brass Fittings with Blue Cap .More AttractiveMore thickerMore StrongerInstallation Instructions:InstallationGrasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.RemovePush the release button to open the spring gasket so that the tubing can be released.Cautions:1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety
