SV652 with Housing Enclosure Bi-Directional Wireless Transceiver Module 27dBm 3Km RF Transmitter Receiver with ESD Protect x 2 PCS (SV652-RS232-915Mhz)
Product details
| Management number | 211044615 | Release Date | 2026/04/04 | List Price | $58.40 | Model Number | 211044615 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Package: 2PCS * SV652 2PCS * Sucker antenna 1PCS * USB Bridge Features: 433/470/868/915 MHz Industrial class 40 channels 4 bytes Net ID & 2 bytes Node ID Series Data Rate: 1200 ~ 115200 bps Air Data Rate: 1200 ~ 115200 bps GFSK modulation RSSI Interface: TTL/RS232/RS485 Antenna matching automatically Bi-directional & Half duplex Sensitivity: -121 dBm Max output power: 500 mW 9+27 dBm) Working voltage:3.3-6.5V Working temperature: -40 ~ +85 °C Weight: 47.g Parameters save automatically Application Remote control telemetry Security system Industrial data acquisition Home automation Wireless data communication Access system Robot control Wireless PC peripherals

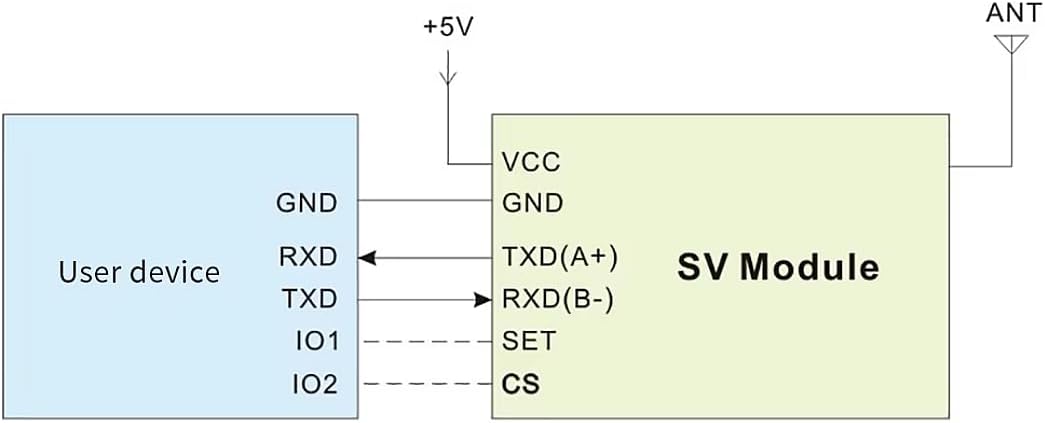

- SV652 is an Industrial class & highly-integrated RF modem. TTL / 232 /485 can be chosen corresponding to SV652-TTL / SV652-232 / SV652-485.
- SV652 has good sensitivity and 500mW output power to achieve long RF range and reliable RF communication.
- To avoid the interference, SV652 provides 40 frequency channels and configurable Net ID.
- SV652 is flexible but easy to use, it comes with many parameters, such as: frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device.
| Item Weight | 3.53 ounces |
|---|---|
| Manufacturer | COOLTECH ELECTRONIC |
| Item model number | SV652 USB wireless modules |
| Package Dimensions | 9.84 x 7.87 x 5.91 inches |
