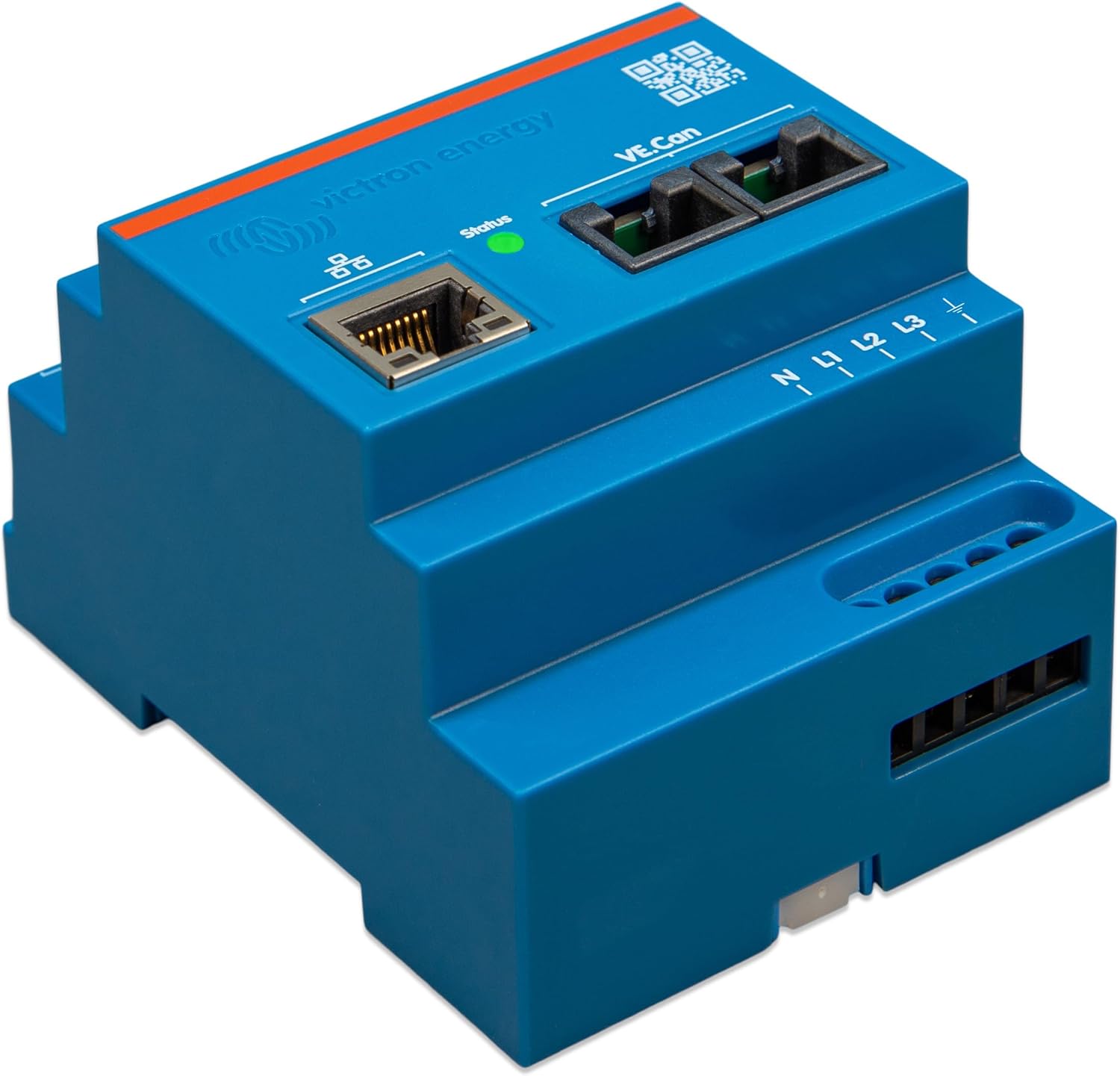

Victron Energy 3-Phase Power & Energy Meter VM-3P75CT
Product details
| Management number | 211707894 | Release Date | 2026/04/04 | List Price | $68.68 | Model Number | 211707894 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Victron VM-3P75CT energy meter is a standard device for measuring power and energy in single- and three-phase applications. It calculates each phase's power values and transmits them over VE.Can or Ethernet at a high rate. This device features built-in Ethernet and VE.Can ports for connection.
- Voltage Connection: Direct
- L-N Voltage Range: 85 to 265VAC
- L-L Voltage Range: 150 to 460VAC
- Operating Frequency: 50/60Hz
- Current Connection: Via included current transformers (640mm wire length)
- Rated Current: 75A
- VE.Can Port: Two RJ45 connectors (terminators included)
- Ethernet Port: One RJ45 connector, Modbus UDP
- Refresh Rate: 100ms
- Power Supply Type: Self via L1-N
- Disconnecting Device: Circuit breaker required (not included)
- Neutral Conductor Fuse: 500mA required (not included)
- Power Consumption: 1.45W / 3.1VA
- Material & Color: Polycarbonate, blue (RAL5012)
- Voltage Connection: Screw terminals (0.25 - 1.5mm2, 24 - 16AWG)
| Color | blue (RAL5012) |
|---|---|
| Model | REL200300100 |
| Brand Name | Victron Energy |
| Item Weight | 370 Grams |
| Manufacturer | Victron Energy |
| Item Dimensions | 5.51 x 3.94 x 2.76 inches |
| Global Trade Identification Number | 08719076059462 |
